【已解决】退出qBittorrent后网络会轻微中断，求诊断~

microka

已解决：详见 8楼
======================



以下是原帖：
--------------------------------------

用的是B610-4E光猫拨号，开启IPv6，光猫配置如下：

硬件版本：1B40.A
软件版本：V5R019C20S190

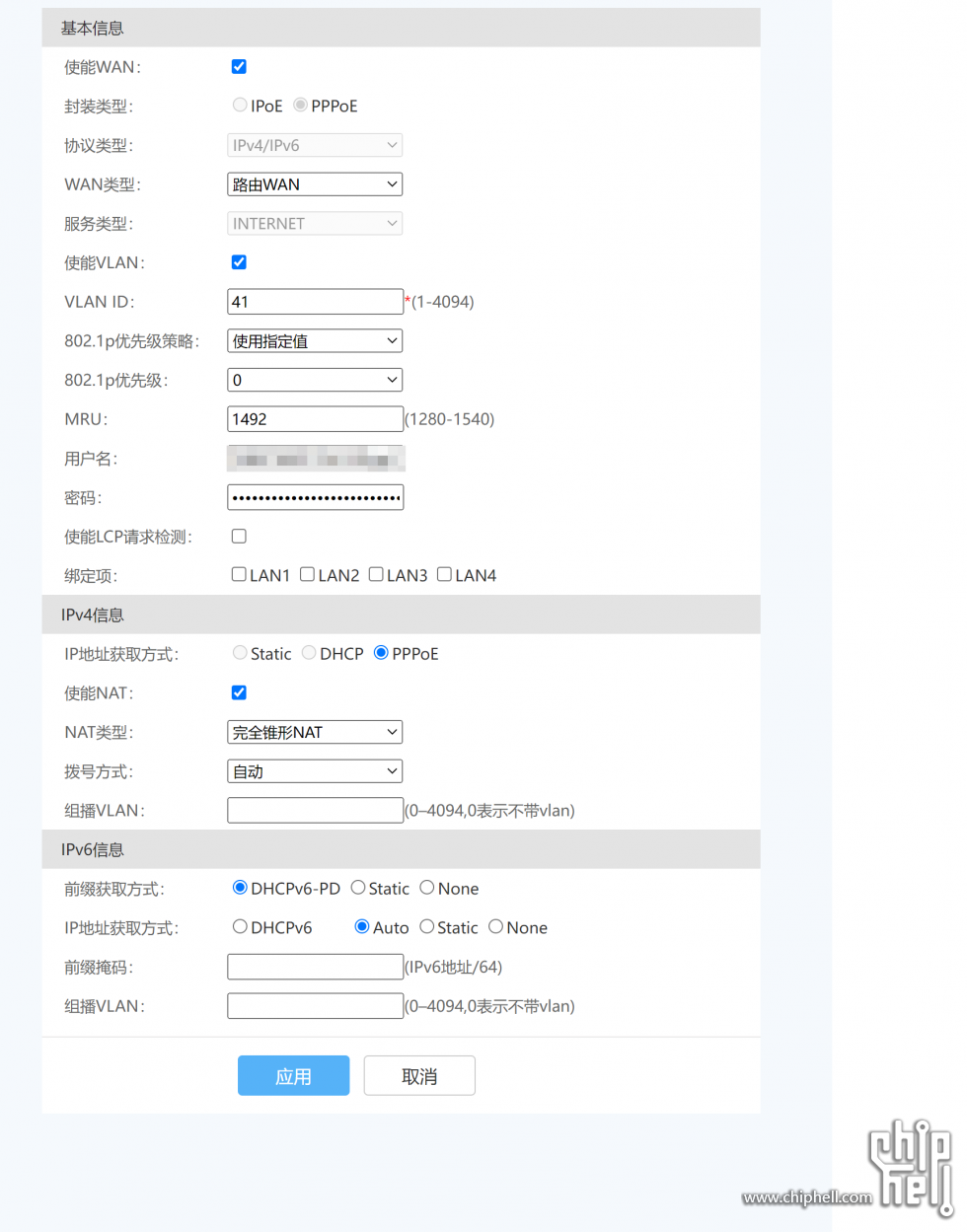

wan配置


DHCPv6配置

Windows 11 + qBittorrent 4.5.2，种子数5000+，活动状态（正在产生上传或下载流量）种子数30~50左右，具体症状为：退出qBittorrent后（退出前已停止所有正在活动的种子），网络会出现轻微中断，比如本机运行的ToDesk和向日葵大概率会变灰（即连不上服务器），但很快又能重新连上；比如局域网内另一台设备访问获取公网IPv6串流会出现断流，也是重新连接就能恢复正常，但过一会儿又有概率再次断流。

查看光猫调试日志，发现log里面自从光猫上一次重启后，正是在退出qBittorrent后，才产生了新的日志记录。光猫日志如下（不含光猫重启初始化阶段）：

1. 2023-05-01 05:14:23 [Debug][Debug-Log] static:[upnp] ActionName: GetExternalIPAddress, Source IP: 192.168.100.88

2. 2023-05-01 05:14:23 [Debug][Debug-Log] static:[upnp] ActionName: GetExternalIPAddress, Source IP: 192.168.100.88

3. 2023-05-01 05:14:23 [Debug][Debug-Log] static:[upnp] ActionName: GetSpecificPortMappingEntry, Source IP: 192.168.100.88

4. 2023-05-01 05:14:23 [Debug][Debug-Log] static:[upnp] ActionName: GetStatusInfo, Source IP: 192.168.100.88

5. 2023-05-01 05:14:23 [Debug][Debug-Log] static:[upnp] ActionName: GetStatusInfo, Source IP: 192.168.100.88

6. 2023-05-01 05:14:27 [Debug][Debug-Log] static:[upnp] ActionName: DeletePortMapping, Source IP: 192.168.100.88

7. 2023-05-01 05:14:27 [Debug][Debug-Log] static:[upnp] ActionName: DeletePortMapping, Source IP: 192.168.100.88

8. 2023-05-01 05:19:31 [Debug][Debug-Log] static:[upnp] ActionName: GetExternalIPAddress, Source IP: 192.168.100.88

9. 2023-05-01 05:19:31 [Debug][Debug-Log] static:[upnp] ActionName: GetExternalIPAddress, Source IP: 192.168.100.88

10. 2023-05-01 05:19:31 [Debug][Debug-Log] static:[upnp] ActionName: GetSpecificPortMappingEntry, Source IP: 192.168.100.88

11. 2023-05-01 05:19:31 [Debug][Debug-Log] static:[upnp] ActionName: GetStatusInfo, Source IP: 192.168.100.88

12. 2023-05-01 05:19:31 [Debug][Debug-Log] static:[upnp] ActionName: GetStatusInfo, Source IP: 192.168.100.88

13. 2023-05-01 05:21:01 [Alert][Debug-Log] dynamic:Load memu from the directory [/html/menu/MenuSmartChina.xml].

14. 2023-05-01 05:21:58 [Debug][Debug-Log] static:[dhcpd]send Ack, xid[3a72bce4], mac[********(LAN1下连交换机)], request serverip[192.168.100.1], clientip[192.168.100.77], yourip[192.168.100.77], dns1[192.168.100.1]

15. 2023-05-01 05:22:33 [Debug][Debug-Log] static:[dhcpd]send Ack, xid[e5f0c16e], mac[****************(LAN3下连交换机)], request serverip[192.168.100.1], clientip[192.168.100.101], yourip[192.168.100.101], dns1[192.168.100.1]

16. 2023-05-01 05:24:39 [Debug][Debug-Log] static:[upnp] ActionName: GetExternalIPAddress, Source IP: 192.168.100.88

17. 2023-05-01 05:24:39 [Debug][Debug-Log] static:[upnp] ActionName: GetExternalIPAddress, Source IP: 192.168.100.88

18. 2023-05-01 05:24:39 [Debug][Debug-Log] static:[upnp] ActionName: GetSpecificPortMappingEntry, Source IP: 192.168.100.88

19. 2023-05-01 05:24:39 [Debug][Debug-Log] static:[upnp] ActionName: GetStatusInfo, Source IP: 192.168.100.88

20. 2023-05-01 05:24:39 [Debug][Debug-Log] static:[upnp] ActionName: GetStatusInfo, Source IP: 192.168.100.88

21. 2023-05-01 05:29:47 [Debug][Debug-Log] static:[upnp] ActionName: GetExternalIPAddress, Source IP: 192.168.100.88

22. 2023-05-01 05:29:47 [Debug][Debug-Log] static:[upnp] ActionName: GetExternalIPAddress, Source IP: 192.168.100.88

23. 2023-05-01 05:29:47 [Debug][Debug-Log] static:[upnp] ActionName: GetSpecificPortMappingEntry, Source IP: 192.168.100.88

24. 2023-05-01 05:29:47 [Debug][Debug-Log] static:[upnp] ActionName: GetStatusInfo, Source IP: 192.168.100.88

25. 2023-05-01 05:29:47 [Debug][Debug-Log] static:[upnp] ActionName: GetStatusInfo, Source IP: 192.168.100.88

26. 2023-05-01 05:33:57 [Debug][Debug-Log] static:[dhcpd]send Ack, xid[5b97d541], mac[********(LAN1下连交换机接入设备)], request serverip[192.168.100.1], clientip[192.168.100.64], yourip[192.168.100.64], dns1[192.168.100.1]

27. 2023-05-01 05:34:56 [Debug][Debug-Log] static:[upnp] ActionName: GetExternalIPAddress, Source IP: 192.168.100.88

28. 2023-05-01 05:34:56 [Debug][Debug-Log] static:[upnp] ActionName: GetExternalIPAddress, Source IP: 192.168.100.88

29. 2023-05-01 05:34:56 [Debug][Debug-Log] static:[upnp] ActionName: GetSpecificPortMappingEntry, Source IP: 192.168.100.88

30. 2023-05-01 05:34:56 [Debug][Debug-Log] static:[upnp] ActionName: GetStatusInfo, Source IP: 192.168.100.88

31. 2023-05-01 05:34:56 [Debug][Debug-Log] static:[upnp] ActionName: GetStatusInfo, Source IP: 192.168.100.88

32. 2023-05-01 05:37:14 [Debug][Debug-Log] static:[dhcpd]send Ack, xid[dea87009], mac[********(LAN3下连交换机接入设备)], request serverip[192.168.100.1], clientip[192.168.100.42], yourip[192.168.100.42], dns1[192.168.100.1]

33. 2023-05-01 05:40:04 [Debug][Debug-Log] static:[upnp] ActionName: GetExternalIPAddress, Source IP: 192.168.100.88

34. 2023-05-01 05:40:04 [Debug][Debug-Log] static:[upnp] ActionName: GetExternalIPAddress, Source IP: 192.168.100.88

35. 2023-05-01 05:40:04 [Debug][Debug-Log] static:[upnp] ActionName: GetSpecificPortMappingEntry, Source IP: 192.168.100.88

36. 2023-05-01 05:40:04 [Debug][Debug-Log] static:[upnp] ActionName: GetStatusInfo, Source IP: 192.168.100.88

37. 2023-05-01 05:40:04 [Debug][Debug-Log] static:[upnp] ActionName: GetStatusInfo, Source IP: 192.168.100.88

38. 2023-05-01 05:41:10 [Debug][Debug-Log] static:[dhcpc]receive Ack, wan[wan4], xid[2e7bb11e], mac[******(B610 IPTV口)], request serverip[183.235.147.255], clientip[100.108.156.233], yourip[100.108.156.233], gateway ip[120.196.31.74], dns1[183.235.146.14], dns2[183.235.146.15]

39. 2023-05-01 05:41:18 [Debug][Debug-Log] static:[dhcpd]send Ack, xid[c84bed2a], mac[****************(LAN3下连交换机接入设备)], request serverip[192.168.100.1], clientip[192.168.100.88], yourip[192.168.100.88], dns1[192.168.100.1]

40. 2023-05-01 05:41:22 [Debug][Debug-Log] static:[dhcp6c]receive dhcp reply! wanName[ppp259],xid[0xd364ec]

41. 2023-05-01 05:41:22 [Informational][Debug-Log] static:[dhcp6c]receive dhcp reply! wanName[ppp259],aftrName[null],dns[2409:8057:2000:2::8,2409:8057:2000:6::8],gateway[null]

42. 2023-05-01 05:42:07 [Debug][Debug-Log] static:[dhcpd]send Ack, xid[1c257873], mac[****************(LAN1下连交换机接入设备)], request serverip[192.168.100.1], clientip[192.168.100.201], yourip[192.168.100.201], dns1[192.168.100.1]

43. 2023-05-01 05:45:12 [Debug][Debug-Log] static:[upnp] ActionName: GetExternalIPAddress, Source IP: 192.168.100.88

44. 2023-05-01 05:45:12 [Debug][Debug-Log] static:[upnp] ActionName: GetExternalIPAddress, Source IP: 192.168.100.88

45. 2023-05-01 05:45:12 [Debug][Debug-Log] static:[upnp] ActionName: GetSpecificPortMappingEntry, Source IP: 192.168.100.88

46. 2023-05-01 05:45:12 [Debug][Debug-Log] static:[upnp] ActionName: GetStatusInfo, Source IP: 192.168.100.88

47. 2023-05-01 05:45:12 [Debug][Debug-Log] static:[upnp] ActionName: GetStatusInfo, Source IP: 192.168.100.88

48. 2023-05-01 05:50:21 [Debug][Debug-Log] static:[upnp] ActionName: GetExternalIPAddress, Source IP: 192.168.100.88

49. 2023-05-01 05:50:21 [Debug][Debug-Log] static:[upnp] ActionName: GetExternalIPAddress, Source IP: 192.168.100.88

50. 2023-05-01 05:50:21 [Debug][Debug-Log] static:[upnp] ActionName: GetSpecificPortMappingEntry, Source IP: 192.168.100.88

51. 2023-05-01 05:50:21 [Debug][Debug-Log] static:[upnp] ActionName: GetStatusInfo, Source IP: 192.168.100.88

52. 2023-05-01 05:50:21 [Debug][Debug-Log] static:[upnp] ActionName: GetStatusInfo, Source IP: 192.168.100.88

53. 2023-05-01 05:51:58 [Debug][Debug-Log] static:[dhcpd]send Ack, xid[3a72bce4], mac[********(LAN1下连交换机)], request serverip[192.168.100.1], clientip[192.168.100.77], yourip[192.168.100.77], dns1[192.168.100.1]

54. 2023-05-01 05:52:34 [Debug][Debug-Log] static:[dhcpd]send Ack, xid[e5f0c16e], mac[****************(LAN3下连交换机)], request serverip[192.168.100.1], clientip[192.168.100.101], yourip[192.168.100.101], dns1[192.168.100.1]

55. 2023-05-01 05:55:30 [Debug][Debug-Log] static:[upnp] ActionName: GetExternalIPAddress, Source IP: 192.168.100.88

56. 2023-05-01 05:55:30 [Debug][Debug-Log] static:[upnp] ActionName: GetExternalIPAddress, Source IP: 192.168.100.88

57. 2023-05-01 05:55:30 [Debug][Debug-Log] static:[upnp] ActionName: GetSpecificPortMappingEntry, Source IP: 192.168.100.88

58. 2023-05-01 05:55:30 [Debug][Debug-Log] static:[upnp] ActionName: GetStatusInfo, Source IP: 192.168.100.88

59. 2023-05-01 05:55:30 [Debug][Debug-Log] static:[upnp] ActionName: GetStatusInfo, Source IP: 192.168.100.88

60. 2023-05-01 05:57:06 [Debug][Debug-Log] static:[dhcpd]send Ack, xid[5b97d541], mac[********(LAN1下连交换机接入设备)], request serverip[192.168.100.1], clientip[192.168.100.64], yourip[192.168.100.64], dns1[192.168.100.1]

复制代码

192.168.100.88是我运行qBittorrent的设备IP，日志时间需要+8转换为本地时间；upnp服务就只有qBit和zerotier，但日志里面的upnp记录应该和zerotier无关，毕竟退出qBit前也没见相关记录。
翻查qBittorrent日志

1. (N) 2023-05-01T13:14:29 - 发起了 qBittorrent 终止操作

2. (I) 2023-05-01T13:14:29 - UPnP/NAT-PMP support: OFF

3. (N) 2023-05-01T13:22:37 - qBittorrent 现在准备好退出了

复制代码

我是在13:06-13:14期间对活动种子执行停止操作，13:14执行退出qB指令，13:22完成qB退出。

求高手帮忙诊断一下，我这问题是出在哪呢？是光猫没配置好还是qB的软件问题？种子数太多如果换另一个BitTorrent测试工程量太大，所以先来请教一下大佬们，谢谢。

hitmanzmj

可能就是退出时候为了同步上传量汇报了所有种子的tracker，因为种子多瞬间突发连接数爆炸。排除法就是暂停剩100个种子做种，然后退出看看卡不卡，估计瓶颈在B610的最大连接数上吧

microka

hitmanzmj 发表于 2023-5-1 14:54
可能就是退出时候为了同步上传量汇报了所有种子的tracker，因为种子多瞬间突发连接数爆炸。排除法就是暂停 ...

但qBit日志显示qBit在13:22已经完全退出了，应该就是完成了所有的tracker汇报后才完全退出的。但B610日志显示在05:22后仍持续产生多条日志，[Debug][Debug-Log] static:[dhcpd]send Ack 这些记录貌似和断连的时间点对上了。

pdvc

开fullcone或者DMZ试试。

玩P2P和PCDN的，光猫还是桥接吧，直接上硬路由跑。

microka

pdvc 发表于 2023-5-1 18:24
开fullcone或者DMZ试试。

玩P2P和PCDN的，光猫还是桥接吧，直接上硬路由跑。

我截图上NAT类型“完全锥形NAT”就是fullcone吧？B610也是一个硬路由吧

15910939106

完全锥形NAT改成受限试试，我之前HS8145V这个选项容易造成重启

zxy2001

膜拜LZ 保种5000+ 。。。 我挂500个种子 QT 就反应慢的一批了

dert

虽然觉得是qBittorrent的退出机制有问题。

也可以把b610固件190更新到210试试，据说修了一些bug。
直接web更新就行。
V5R019C20S210

https://www.chinadsl.net/forum.php?mod=viewthread&tid=174080&extra=page%3D1
或
https://www.right.com.cn/forum/thread-8285737-1-2.html
这2个贴是同一个up发的，rar文件完全一样。
我的b610直接升级了没有问题。

microka

dert 发表于 2023-5-1 23:25
虽然觉得是qBittorrent的退出机制有问题。

也可以把b610固件190更新到210试试，据说修了一些bug。

谢谢，我之前一直不敢补全shell和升级固件，这次正好试试，补全shell和升级固件成功，观察一下。

ysc3839

建议不要光猫拨号，直接电脑连光猫电脑拨号试试情况如何？

microka

dert 发表于 2023-5-1 23:25
虽然觉得是qBittorrent的退出机制有问题。

也可以把b610固件190更新到210试试，据说修了一些bug。

感谢大佬，更新到210固件后正常了。

microka

Hmmm....  后面qBittorrent更新到v4.5.4版本后，退出又有断流问题了……

tyy474

我买的是那个B610-S1-4E，好像没得刷，就当个普通光猫桥接，iptv拨号而已，目前稳定，之前那个华为8145V6内存bug一直解决不了，就换了
