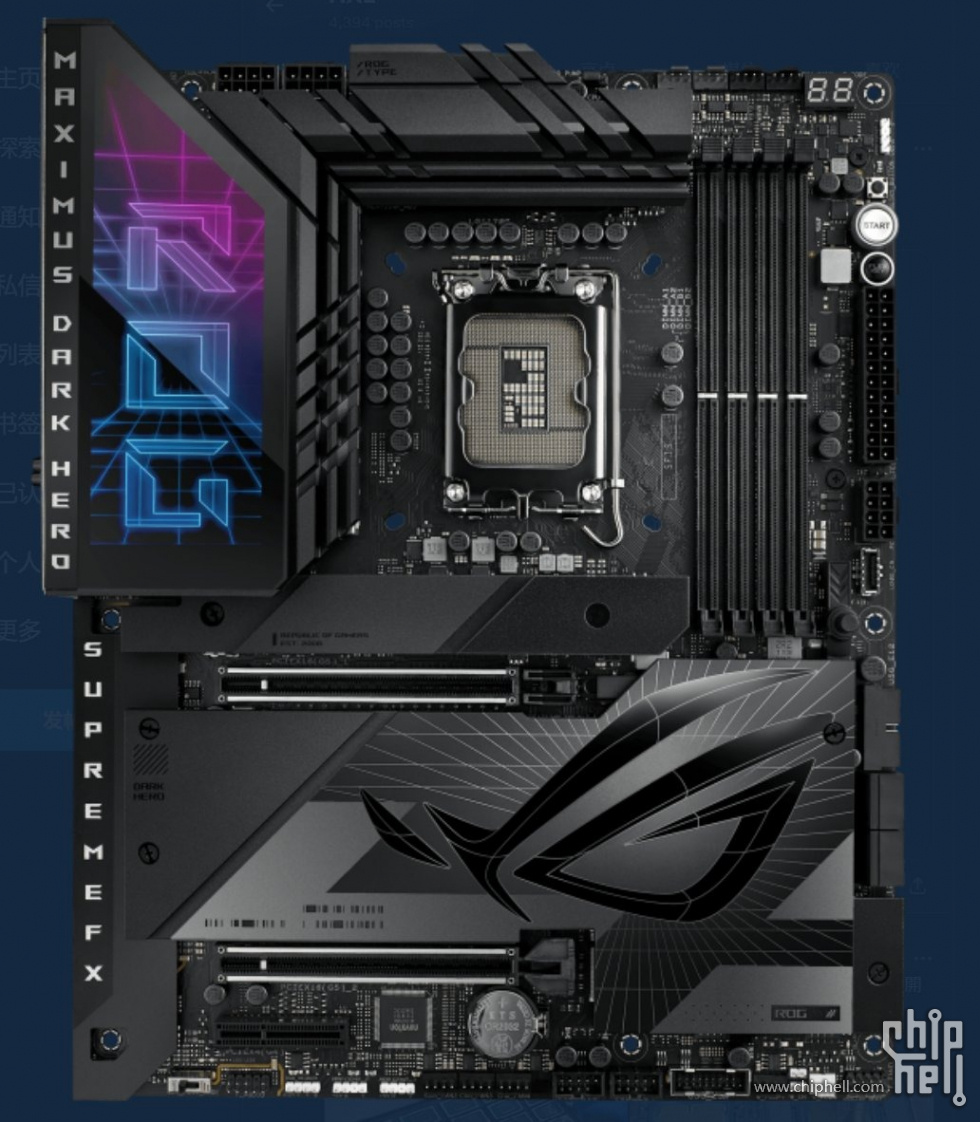

ROG Z790 DARK HERO这VRM散热是不是缩水了？

gtx9

AndersenTY

你咋看出来的

chokin

你还不如说M.2的扩展卡没了（但其实把所有的M.2都塞到散热片下面了，1条5.0的，4条4.0的）

hengbn

还是以前的红黑主题的rog才是真的用料好

yguomin

是指散热片的纹理少了一层？

momoka

ROG这仨字，和 ROG眼睛，都史无前例的变大了，还不够么

flc19900219

扩展卡没了希望降价...PCIE也动位置了...

改动还是比较大的

alangl

眼睛再大还不是被显卡压在下面

fanyinsu

散热片好像是不大一样

xyk456as

目测不是会有质变的区别

conanhfl

CPU供电3x8pin? 跟WRX80E看齐1000W了

fenglin94

第二条pcie往下移了，其他看不出变化……

ambacl

我愣是没看出缩水和转贴机是不是又赢了有啥关系？I在华硕地位下降的标志？

chokin

conanhfl 发表于 2023-8-23 11:35
CPU供电3x8pin? 跟WRX80E看齐1000W了

有一个8Pin是给PD快充的

cloud

最后个pcie 不是8x有点遗憾

xuting77

传说中的apex2呢

fsc625

apex都还没有上急什么

炼金术士

评价为z790extreme换皮atx
板载一个5.0的m2，1个直连4.0，3个pch 4.0
用了5.0m2就不能用第二条插槽，那你动位置的意义何在，很无语的设计
应该是为竖插显卡做了妥协，把没卵用的5.0 m2板载了
拓展性不如现在的z790hero，倒车请注意，倒车请注意

Intel® Z790 LGA 1700 ATX motherboard with 20 + 1 power stages, DDR5, Wi-Fi 7 with ASUS WiFi Q-Antenna, five M.2 slots, PCIe® 5.0 NVMe® SSD slot onboard, PCIe 5.0 x16 SafeSlots with Q-Release, two Thunderbolt™ 4 ports, USB 20Gbps Type-C® front-panel connector with Quick Charge 4+ up to 60W, AI Overclocking, AI Cooling II, AI Networking, Two-way AI Noise Cancelation, and Aura Sync RGB lighting

Intel® LGA 1700 socket: Ready for Intel® Core™ Next-Gen & 13th Gen processors, Intel Core 12th Gen, Pentium® Gold and Celeron® Processors
Robust Power Solution: 20+1 teamed power solution rated for 90A per stage with dual ProCool II power connectors, high-quality alloy chokes, and durable capacitors to support multi-core processors
Optimized VRM Thermals: Massive heatsinks integrated with the I/O cover, joined by an L-shaped heatpipe, and connected to the power stages with high-conductivity thermal pads
Latest M.2 Support: Onboard PCIe® 5.0 M.2 slot, and four PCIe 4.0 M.2 slots all with substantial cooling solutions
Abundant Connectivity: Dual Thunderbolt™ 4 USB Type-C® ports, USB 20Gbps Type-C front-panel connector with Quick Charge 4+ up to 60W and USB Wattage Watcher, six additional USB 10Gbps ports, two PCIe 5.0 x16 SafeSlots, HDMI™ 2.1
High-Performance Networking: On-board Intel Wi-Fi 7 (802.11be) and Intel 2.5 Gb Ethernet with ASUS LANGuard
Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
Immersive Audio: ROG SupremeFX ALC4082 codec with ESS® ES9218 Quad DAC for up to 32-Bit/384 kHz playback
Unmatched Personalization: I/O cover with Polymo Lighting, three addressable Gen 2 headers and one RGB header, all configurable with ASUS-exclusive Aura Sync RGB lighting
DIY Friendly Design: PCIe Slot Q-Release, M.2 Q-Latch, Q-Antenna, pre-mounted I/O shield, Q-Code, Q-LED, FlexKey button, Start button, BIOS FlashBack™ button, and Clear CMOS button
Renowned Software: Bundled 9-month Intel Unison 2 Premium subscription, bundled 1-year AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard with integrated MemTest86

炼金术士

炼金术士 发表于 2023-8-23 19:35
评价为z790extreme换皮atx
板载一个5.0的m2，1个直连4.0，3个pch 4.0
用了5.0m2就不能用第二条插槽，那你动 ...

补充一点，z790hero的hyper m2卡真的好用，m2至少降温10°，不需要还可以出掉回血500
底下那条4+4的插槽，可以转2个u2，直接PCIe卡的那种，不需要转接线

chipSEA

硬盘装满再压块厚显卡，温度得炸，下面那一坨还和pch连起来的。换硬盘的话还没旧的方便。

958813826

现在这个z790估计就是890换皮吧？

zjlulutong

chokin 发表于 2023-8-23 10:35
你还不如说M.2的扩展卡没了（但其实把所有的M.2都塞到散热片下面了，1条5.0的，4条4.0的） ...

那5.0还要分显卡，哎，英特尔咋这么抠呢？

ghgfhghj

等dark apex出再考虑

Jutean

反应好再出个dark extreme？
