求助Linux大神：Z690主板通过 ASM1064 扩展出的 SATA 口在 Ubuntu 下不工作

itd

WIN11 和 Ubuntu 22.04 双系统
主板是 映泰Z690GTA，带8个SATA口，其中4个是原生，另外4个是通过ASM1064扩展出来的。
八口插满盘，BIOS 和 Win11 都能正常识别，但 Ubuntu 里只能识别4个原生 SATA 口上的盘。

本人 Linux 小白，搜索了下用 LSPCI 命令看到如下图，ASM1064 驱动应该是已经装上了吧，
扫描，重启，都不好使，不知道还有其他什么能做的。
谢谢大家。

9283684

驱动有没有加载，用 lspci -vvv 看。

itd

9283684 发表于 2024-6-2 11:49
驱动有没有加载，用 lspci -vvv 看。

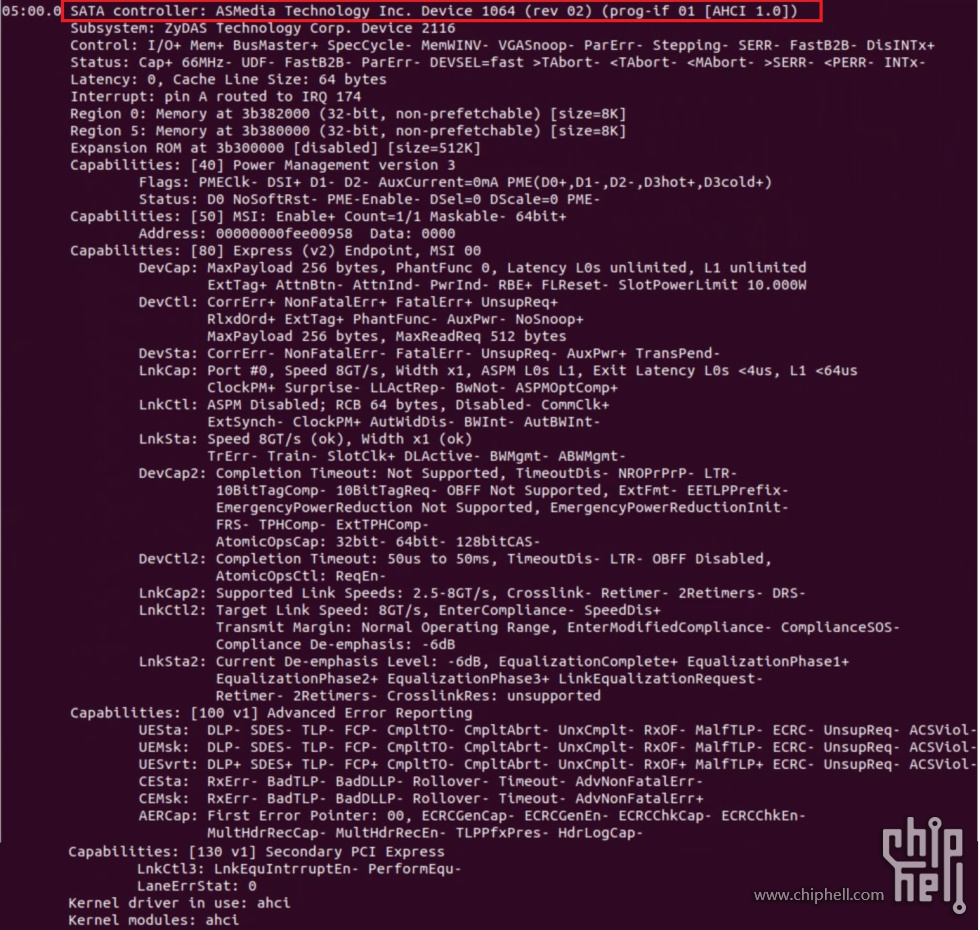

谢谢，用这个命令看了下，有两项相关的输出，如下截图
第一张图应该是说原生的sata，第二张就是asm1064，
不懂这样显示驱动是不是已经算是加载了呢

9283684

你这是已经驱动了，用的 ahci 驱动。用 ls -l /dev/disk/by-id (这个会显示硬盘序列号) 或者 ls -l /dev/disk/by-path 看看有没有列出所有的盘。如果没有，看看 dmesg 有没有什么错误信息。

itd

9283684 发表于 2024-6-2 19:48
你这是已经驱动了，用的 ahci 驱动。用 ls -l /dev/disk/by-id (这个会显示硬盘序列号) 或者 ls -l /dev/di ...

ls 没有列出扩展sata口上的盘，dmesg 输出的信息太多了，我清空之后重启了电脑，
把跟硬盘相关的部分拷出来贴在下面了，可以看到原生sata口的四个盘都列出来了，
扩展口似乎也识别了，但没列出详细的硬盘信息，这部分也没有那种红字报错。
麻烦大佬有时间的话帮忙喽一眼，我也找一下其中的可疑信息到网上搜搜看。

1. [    0.897368] intel-lpss 0000:00:15.0: enabling device (0004 -> 0006)

2. [    0.897640] idma64 idma64.0: Found Intel integrated DMA 64-bit

3. [    0.899539] ahci 0000:00:17.0: AHCI 0001.0301 32 slots 4 ports 6 Gbps 0xf0 impl SATA mode

4. [    0.899541] ahci 0000:00:17.0: flags: 64bit ncq sntf led clo only pio slum part ems deso sadm sds

5. [    0.905619] nvme nvme0: bad crto:0 cap:8202020ff0103ff

6. [    0.906507] r8169 0000:06:00.0 eth0: RTL8125B, f4:b5:20:45:9f:b9, XID 641, IRQ 133

7. [    0.906510] r8169 0000:06:00.0 eth0: jumbo features [frames: 9194 bytes, tx checksumming: ko]

8. [    0.910166] nvme nvme2: Shutdown timeout set to 10 seconds

9. [    0.915505] intel-lpss 0000:00:15.1: enabling device (0004 -> 0006)

10. [    0.915581] nvme nvme2: 24/0/0 default/read/poll queues

11. [    0.915848] idma64 idma64.1: Found Intel integrated DMA 64-bit

12. [    0.919565]  nvme2n1: p1 p2 p3 p4

13. [    0.921716] nvme nvme0: allocated 40 MiB host memory buffer.

14. [    0.931889] nvme nvme1: allocated 64 MiB host memory buffer.

15. [    0.941117] scsi host0: ahci

16. [    0.941240] scsi host1: ahci

17. [    0.941316] scsi host2: ahci

18. [    0.941381] scsi host3: ahci

19. [    0.941522] scsi host4: ahci

20. [    0.941645] scsi host5: ahci

21. [    0.941751] scsi host6: ahci

22. [    0.941837] scsi host7: ahci

23. [    0.941880] ata1: DUMMY

24. [    0.941881] ata2: DUMMY

25. [    0.941882] ata3: DUMMY

26. [    0.941883] ata4: DUMMY

27. [    0.941890] ata5: SATA max UDMA/133 abar m2048@0x3b702000 port 0x3b702300 irq 129

28. [    0.941895] ata6: SATA max UDMA/133 abar m2048@0x3b702000 port 0x3b702380 irq 129

29. [    0.941899] ata7: SATA max UDMA/133 abar m2048@0x3b702000 port 0x3b702400 irq 129

30. [    0.941904] ata8: SATA max UDMA/133 abar m2048@0x3b702000 port 0x3b702480 irq 129

31. [    0.942152] ahci 0000:05:00.0: SSS flag set, parallel bus scan disabled

32. [    0.952261] ahci 0000:05:00.0: AHCI 0001.0301 32 slots 4 ports 6 Gbps 0xf impl SATA mode

33. [    0.952266] ahci 0000:05:00.0: flags: 64bit ncq sntf stag pm led only pio sxs deso sadm sds apst

34. [    0.952917] scsi host8: ahci

35. [    0.953059] scsi host9: ahci

36. [    0.953206] scsi host10: ahci

37. [    0.953375] scsi host11: ahci

38. [    0.953448] ata9: SATA max UDMA/133 abar m8192@0x3b380000 port 0x3b380100 irq 174

39. [    0.953451] ata10: SATA max UDMA/133 abar m8192@0x3b380000 port 0x3b380180 irq 174

40. [    0.953454] ata11: SATA max UDMA/133 abar m8192@0x3b380000 port 0x3b380200 irq 174

41. [    0.953457] ata12: SATA max UDMA/133 abar m8192@0x3b380000 port 0x3b380280 irq 174

42. [    0.964732] nvme nvme0: 16/0/0 default/read/poll queues

43. [    0.971069] nvme nvme1: 16/0/0 default/read/poll queues

44. [    0.975682]  nvme1n1: p1 p2

45. [    0.995293] nvme nvme0: Ignoring bogus Namespace Identifiers

46. [    1.008518]  nvme0n1: p1

47. [    1.148556] usb 1-3: new high-speed USB device number 2 using xhci_hcd

48. [    1.254885] ata8: SATA link down (SStatus 4 SControl 300)

49. [    1.254927] ata6: SATA link down (SStatus 4 SControl 300)

50. [    1.254969] ata7: SATA link down (SStatus 4 SControl 300)

51. [    1.255008] ata5: SATA link down (SStatus 4 SControl 300)

52. [    1.266905] ata9: SATA link up 6.0 Gbps (SStatus 133 SControl 300)

53. [    1.267077] ata9.00: ATA-9: V&G SSD, Q0810B, max UDMA/133

54. [    1.267130] ata9.00: 4000797360 sectors, multi 1: LBA48 NCQ (depth 32), AA

55. [    1.267594] ata9.00: Features: Dev-Sleep

56. [    1.268277] ata9.00: configured for UDMA/133

57. [    1.268513] scsi 8:0:0:0: Direct-Access     ATA      V&G SSD          0B   PQ: 0 ANSI: 5

58. [    1.269135] sd 8:0:0:0: Attached scsi generic sg0 type 0

59. [    1.269275] sd 8:0:0:0: [sda] 4000797360 512-byte logical blocks: (2.05 TB/1.86 TiB)

60. [    1.269325] sd 8:0:0:0: [sda] Write Protect is off

61. [    1.269333] sd 8:0:0:0: [sda] Mode Sense: 00 3a 00 00

62. [    1.269374] sd 8:0:0:0: [sda] Write cache: enabled, read cache: enabled, doesn't support DPO or FUA

63. [    1.269428] sd 8:0:0:0: [sda] Preferred minimum I/O size 512 bytes

64. [    1.271151]  sda: sda1 sda2

65. [    1.271359] sd 8:0:0:0: [sda] Attached SCSI disk

66. [    1.299990] usb 1-3: New USB device found, idVendor=05e3, idProduct=0610, bcdDevice=87.34

67. [    1.299995] usb 1-3: New USB device strings: Mfr=1, Product=2, SerialNumber=0

68. [    1.299998] usb 1-3: Product: USB2.1 Hub

69. [    1.300001] usb 1-3: Manufacturer: GenesysLogic

70. [    1.301206] hub 1-3:1.0: USB hub found

71. [    1.301532] hub 1-3:1.0: 4 ports detected

72. [    1.424696] usb 2-3: new SuperSpeed Plus Gen 2x1 USB device number 2 using xhci_hcd

73. [    1.447842] usb 2-3: New USB device found, idVendor=05e3, idProduct=0625, bcdDevice=87.34

74. [    1.447846] usb 2-3: New USB device strings: Mfr=1, Product=2, SerialNumber=0

75. [    1.447848] usb 2-3: Product: USB3.2 Hub

76. [    1.447850] usb 2-3: Manufacturer: GenesysLogic

77. [    1.449035] hub 2-3:1.0: USB hub found

78. [    1.449488] hub 2-3:1.0: 4 ports detected

79. [    1.572552] usb 1-6: new low-speed USB device number 3 using xhci_hcd

80. [    1.582885] ata10: SATA link up 6.0 Gbps (SStatus 133 SControl 300)

81. [    1.583025] ata10.00: ATA-9: V&G SSD, Q0810B, max UDMA/133

82. [    1.583078] ata10.00: 4000797360 sectors, multi 1: LBA48 NCQ (depth 32), AA

83. [    1.583525] ata10.00: Features: Dev-Sleep

84. [    1.584182] ata10.00: configured for UDMA/133

85. [    1.584317] scsi 9:0:0:0: Direct-Access     ATA      V&G SSD          0B   PQ: 0 ANSI: 5

86. [    1.584722] sd 9:0:0:0: Attached scsi generic sg1 type 0

87. [    1.584831] sd 9:0:0:0: [sdb] 4000797360 512-byte logical blocks: (2.05 TB/1.86 TiB)

88. [    1.584852] sd 9:0:0:0: [sdb] Write Protect is off

89. [    1.584857] sd 9:0:0:0: [sdb] Mode Sense: 00 3a 00 00

90. [    1.584887] sd 9:0:0:0: [sdb] Write cache: enabled, read cache: enabled, doesn't support DPO or FUA

91. [    1.584929] sd 9:0:0:0: [sdb] Preferred minimum I/O size 512 bytes

92. [    1.586352]  sdb: sdb1 sdb2

93. [    1.586492] sd 9:0:0:0: [sdb] Attached SCSI disk

94. [    1.723505] usb 1-6: New USB device found, idVendor=275d, idProduct=0ba6, bcdDevice= 1.00

95. [    1.723509] usb 1-6: New USB device strings: Mfr=0, Product=1, SerialNumber=0

96. [    1.723511] usb 1-6: Product: USB OPTICAL MOUSE

97. [    1.852551] usb 1-11: new high-speed USB device number 4 using xhci_hcd

98. [    1.898863] ata11: SATA link up 6.0 Gbps (SStatus 133 SControl 300)

99. [    1.899007] ata11.00: ATA-9: V&G SSD, Q0810B, max UDMA/133

100. [    1.899047] ata11.00: 4000797360 sectors, multi 1: LBA48 NCQ (depth 32), AA

101. [    1.899488] ata11.00: Features: Dev-Sleep

102. [    1.900136] ata11.00: configured for UDMA/133

103. [    1.900231] scsi 10:0:0:0: Direct-Access     ATA      V&G SSD          0B   PQ: 0 ANSI: 5

104. [    1.900514] sd 10:0:0:0: Attached scsi generic sg2 type 0

105. [    1.900616] sd 10:0:0:0: [sdc] 4000797360 512-byte logical blocks: (2.05 TB/1.86 TiB)

106. [    1.900639] sd 10:0:0:0: [sdc] Write Protect is off

107. [    1.900643] sd 10:0:0:0: [sdc] Mode Sense: 00 3a 00 00

108. [    1.900669] sd 10:0:0:0: [sdc] Write cache: enabled, read cache: enabled, doesn't support DPO or FUA

109. [    1.900706] sd 10:0:0:0: [sdc] Preferred minimum I/O size 512 bytes

110. [    1.902199]  sdc: sdc1 sdc2

111. [    1.902319] sd 10:0:0:0: [sdc] Attached SCSI disk

112. [    2.001801] usb 1-11: New USB device found, idVendor=05e3, idProduct=0608, bcdDevice=60.90

113. [    2.001806] usb 1-11: New USB device strings: Mfr=0, Product=1, SerialNumber=0

114. [    2.001809] usb 1-11: Product: USB2.0 Hub

115. [    2.002833] hub 1-11:1.0: USB hub found

116. [    2.003118] hub 1-11:1.0: 4 ports detected

117. [    2.132550] usb 1-14: new full-speed USB device number 5 using xhci_hcd

118. [    2.214907] ata12: SATA link up 6.0 Gbps (SStatus 133 SControl 300)

119. [    2.215073] ata12.00: ATA-9: V&G SSD, Q0810B, max UDMA/133

120. [    2.215127] ata12.00: 4000797360 sectors, multi 1: LBA48 NCQ (depth 32), AA

121. [    2.215587] ata12.00: Features: Dev-Sleep

122. [    2.216257] ata12.00: configured for UDMA/133

123. [    2.216418] scsi 11:0:0:0: Direct-Access     ATA      V&G SSD          0B   PQ: 0 ANSI: 5

124. [    2.216781] sd 11:0:0:0: Attached scsi generic sg3 type 0

125. [    2.216922] sd 11:0:0:0: [sdd] 4000797360 512-byte logical blocks: (2.05 TB/1.86 TiB)

126. [    2.216942] sd 11:0:0:0: [sdd] Write Protect is off

127. [    2.216946] sd 11:0:0:0: [sdd] Mode Sense: 00 3a 00 00

128. [    2.216975] sd 11:0:0:0: [sdd] Write cache: enabled, read cache: enabled, doesn't support DPO or FUA

129. [    2.217017] sd 11:0:0:0: [sdd] Preferred minimum I/O size 512 bytes

130. [    2.218532]  sdd: sdd1 sdd2

131. [    2.218655] sd 11:0:0:0: [sdd] Attached SCSI disk

132. [    2.268601] r8169 0000:06:00.0 enp6s0: renamed from eth0

133. [    2.286006] usb 1-14: New USB device found, idVendor=8087, idProduct=0029, bcdDevice= 0.01

134. [    2.286015] usb 1-14: New USB device strings: Mfr=0, Product=0, SerialNumber=0

135. [    2.294545] hid: raw HID events driver (C) Jiri Kosina

136. [    2.298637] usbcore: registered new interface driver usbhid

137. [    2.298640] usbhid: USB HID core driver

138. [    2.301090] input: USB OPTICAL MOUSE  as /devices/pci0000:00/0000:00:14.0/usb1/1-6/1-6:1.0/0003:275D:0BA6.0001/input/input6

139. [    2.301210] hid-generic 0003:275D:0BA6.0001: input,hidraw0: USB HID v1.11 Mouse [USB OPTICAL MOUSE ] on usb-0000:00:14.0-6/input0

140. [    2.390952] fbcon: Taking over console

141. [    2.391063] Console: switching to colour frame buffer device 128x48

142. [    2.399223] EXT4-fs (nvme2n1p4): mounted filesystem c0151370-0ffb-41fa-92da-8ada3c51687b ro with ordered data mode. Quota mode: none.

143. [    2.469769] systemd[1]: Inserted module 'autofs4'

144. [    2.497749] systemd[1]: systemd 249.11-0ubuntu3.12 running in system mode (+PAM +AUDIT +SELINUX +APPARMOR +IMA +SMACK +SECCOMP +GCRYPT +GNUTLS +OPENSSL +ACL +BLKID +CURL +ELFUTILS +FIDO2 +IDN2 -IDN +IPTC +KMOD +LIBCRYPTSETUP +LIBFDISK +PCRE2 -PWQUALITY -P11KIT -QRENCODE +BZIP2 +LZ4 +XZ +ZLIB +ZSTD -XKBCOMMON +UTMP +SYSVINIT default-hierarchy=unified)

145. [    2.497875] systemd[1]: Detected architecture x86-64.

146. [    2.498127] systemd[1]: Hostname set to <newbie-Z690GTA>.


复制代码

seekong

lsblk试试看 输出什么信息

litel

内核更新到最新呢。。。
或者试试Ubuntu24？

itd

seekong 发表于 2024-6-3 01:31
lsblk试试看 输出什么信息

这个命令昨天试过了，显示不出来扩展sata上面的盘

itd

litel 发表于 2024-6-3 06:55
内核更新到最新呢。。。
或者试试Ubuntu24？

刚更新到了Ubuntu24，仍然没起作用。内核的话晚点我再看看。

litel

主板BIOS升级最新呢

chopin1998

lsblk 看一下

tasagapro

楼主没有识别出物理接口，可能是扩展卡坏了，或者是OS兼容性问题。。换24.04试试？

enben

搜下，有说驱动加载错了。

wxlg1117

itd 发表于 2024-6-2 22:23
ls 没有列出扩展sata口上的盘，dmesg 输出的信息太多了，我清空之后重启了电脑，
把跟硬盘相关的部分拷出 ...

[    1.254885] ata8: SATA link down (SStatus 4 SControl 300)
[    1.254927] ata6: SATA link down (SStatus 4 SControl 300)
[    1.254969] ata7: SATA link down (SStatus 4 SControl 300)
[    1.255008] ata5: SATA link down (SStatus 4 SControl 300)

这里似乎都down了?
