OWC 4M2更新USB4款了

coolbo

芯片使用2464PDX，同时支持pcie通道和usb通道好评，配合Mac mini做一个轻量级媒体库还是不错的选择，有两颗40的风扇，后续看看是不是4020可以还猫扇

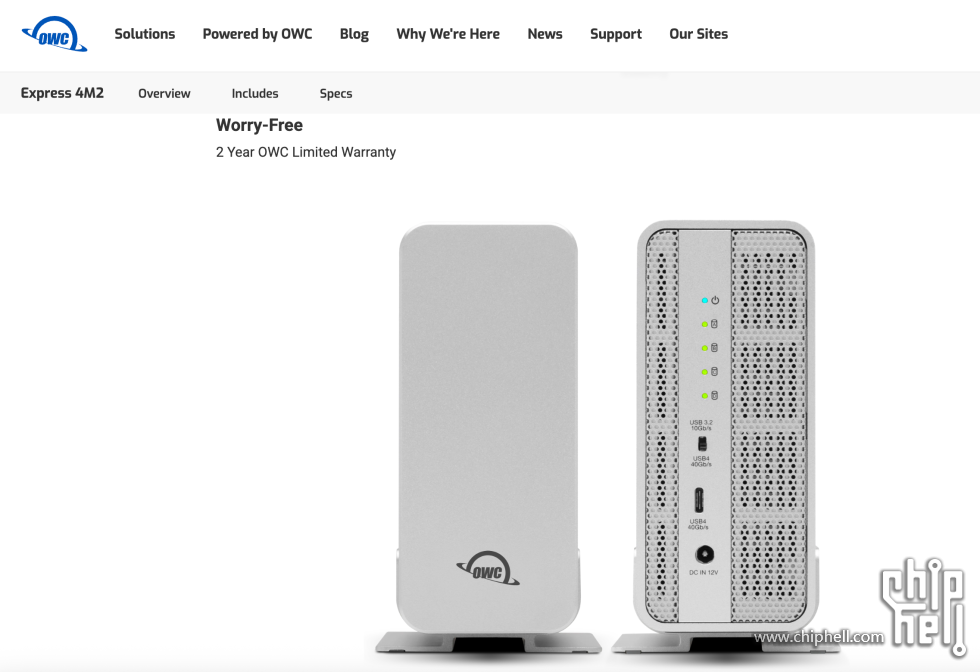

https://www.owc.com/solutions/express-4m2

Detailed Specs
Drive Bays
4 bays supporting: M.2 SSDs
Supports single-sided and double-sided M.2 2280, M.2 2242, M.2 2230 "M Key" drives
NVMe SSDs with a heatsink are not supported.
Each bay offers PCIe 4.0 x1 performance.
Single drive performance up to 1600MB/s.

Device Ports
(1) Host Port - USB4 (USB-C) up to 40Gb/s (5000MB/s) - USB 3.2 Gen 2 (USB-C) up to 10Gb/s (1250MB/s) backwards compatible

Chipset / Controller
USB4: Asmedia ASM-2464PDX

Fans
(2) 40mm 4,000RPM cooling fans
< 35°C (FAN OFF)|>= 35°C (FAN-PWM 40%)|>= 45°C (FAN-PWM 60%)|>= 50°C (FAN-PWM 80%)|>= 55°C (FAN-PWM 100%)

nekotheo

其实这个4*M2外置存储可以做个投影形状与Mac mini或Mac Studio一致的，堆叠使用。我记得OWC以前有硬盘盒是和Mac Studio/Mac Mini（老款）能叠在一起的。

sun1a2b3c4d

4.0x1？配什么盘好呢？

pdvc

佳翼不是早有了

coolbo

pdvc 发表于 2025-7-24 20:40
佳翼不是早有了

jeyi居然能做到500价格….owc是5倍价格，wero那个雷电3的也要2300

pdvc

coolbo 发表于 2025-7-24 22:35
jeyi居然能做到500价格….owc是5倍价格，wero那个雷电3的也要2300

佳翼的还是fanless的，剩的钱可以买猫扇桌面版了。

佳翼的我买了俩，还没装，等装好了再发帖
